PSTAT 100: Lecture 04
Statistical Visalizations, Part II
Ethan P. Marzban
Department of Statistics and Applied Probability; UCSB
Summer Session A, 2025
The Grammar of Graphics
Most of us can probably make a graph pretty easily, with a pen, paper, and a ruler.
But what are the actual components that go into a visualization?
- This is an important question to answer in order to be able to make computers generate graphs and visualizations.
Hopefully everyone had a chance to at least skim through the paper that was linked as reading for today, so you should all know that one answer to this question can be found in the so-called grammar of graphics
First proposed by Leland Wilkinson in 1999, and then modified by Hadley Wickham in the 2000s.
The Grammar of Graphics
First, we need data (remember this from earlier this week?)
Next, we need to specify axes / a coordinate system
- What variable goes on the x-axis? What about the y-axis? Should we include a radial axis? Should we make a map?

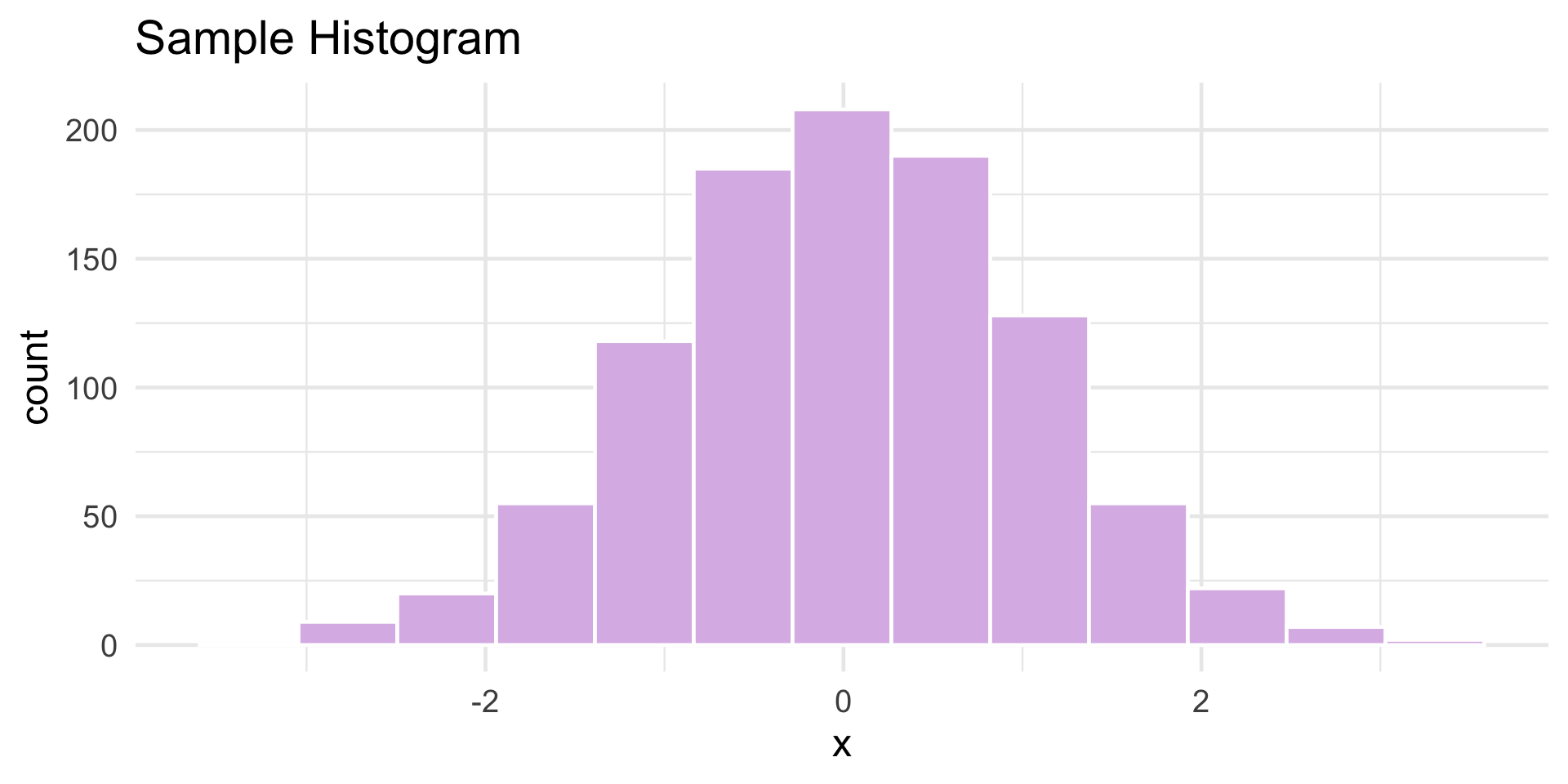

Finally, we need geometric objects (shortened to geoms)
- Do we need bars or points? Lines or sectors? Etc.
Aesthetics are additional attributes of the geoms, to which variables can be mapped (e.g. coordinates of points, heights of bars, etc.)
- Be careful to distinguish the aesthetics from the aesthetic mappings - the latter is what maps the data to the former.

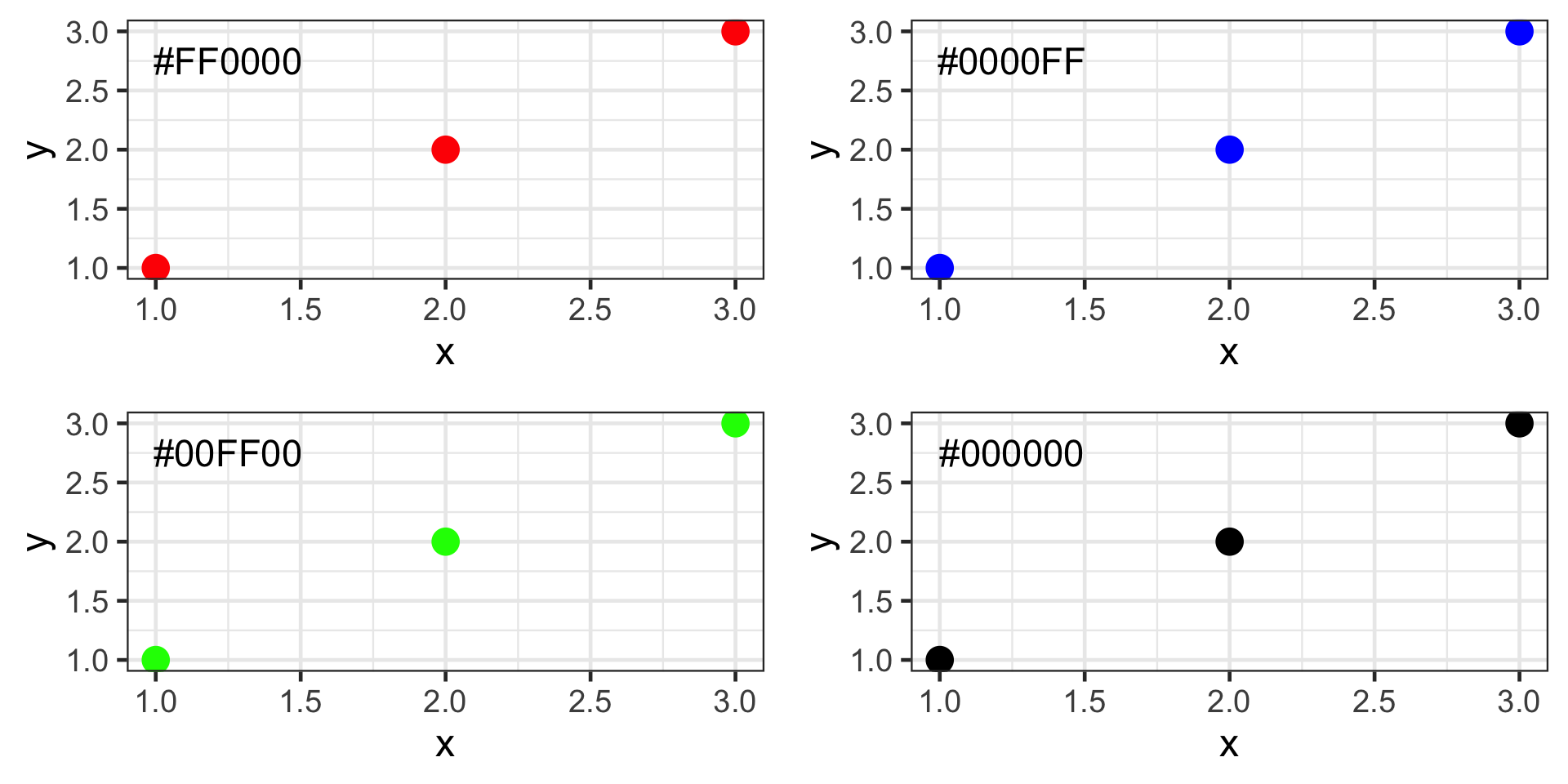

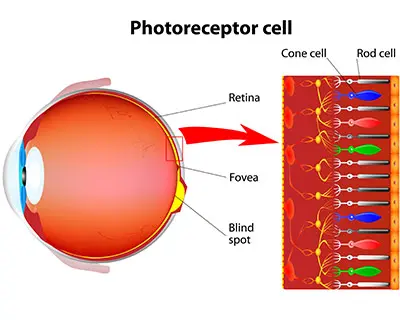

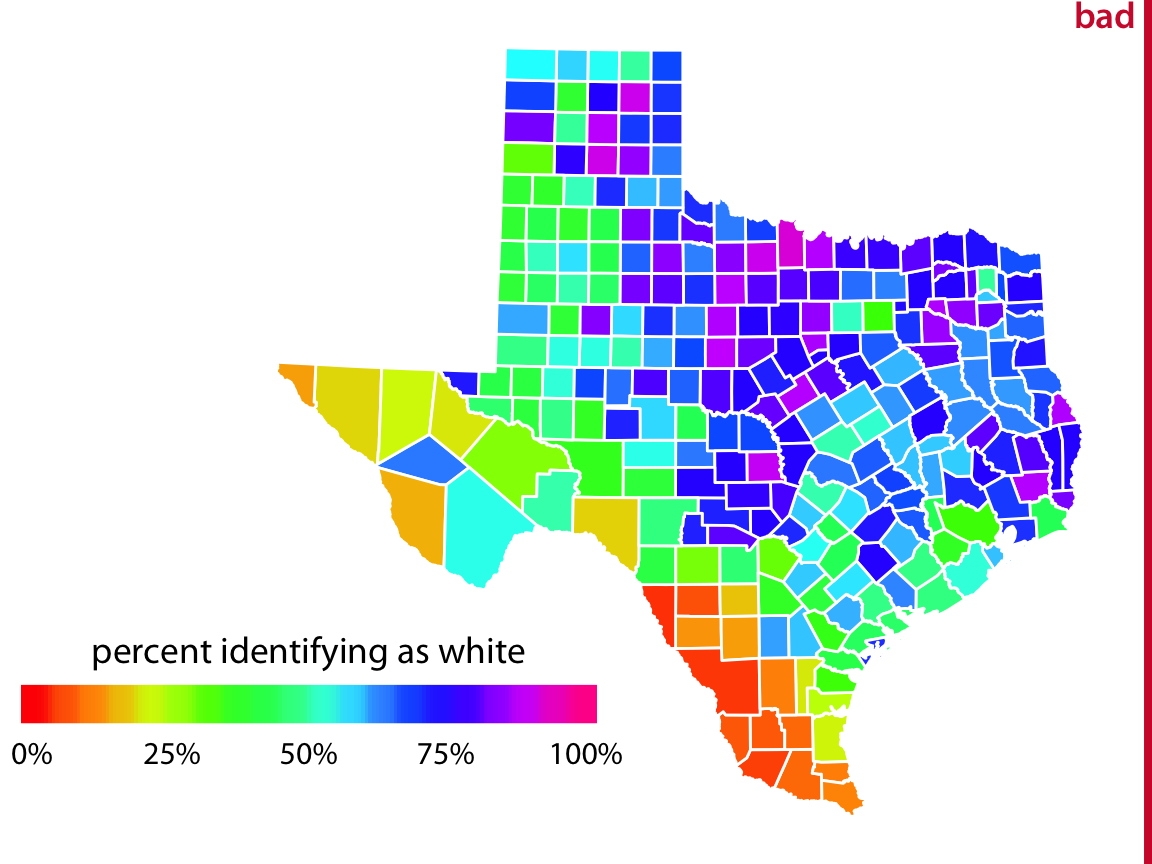

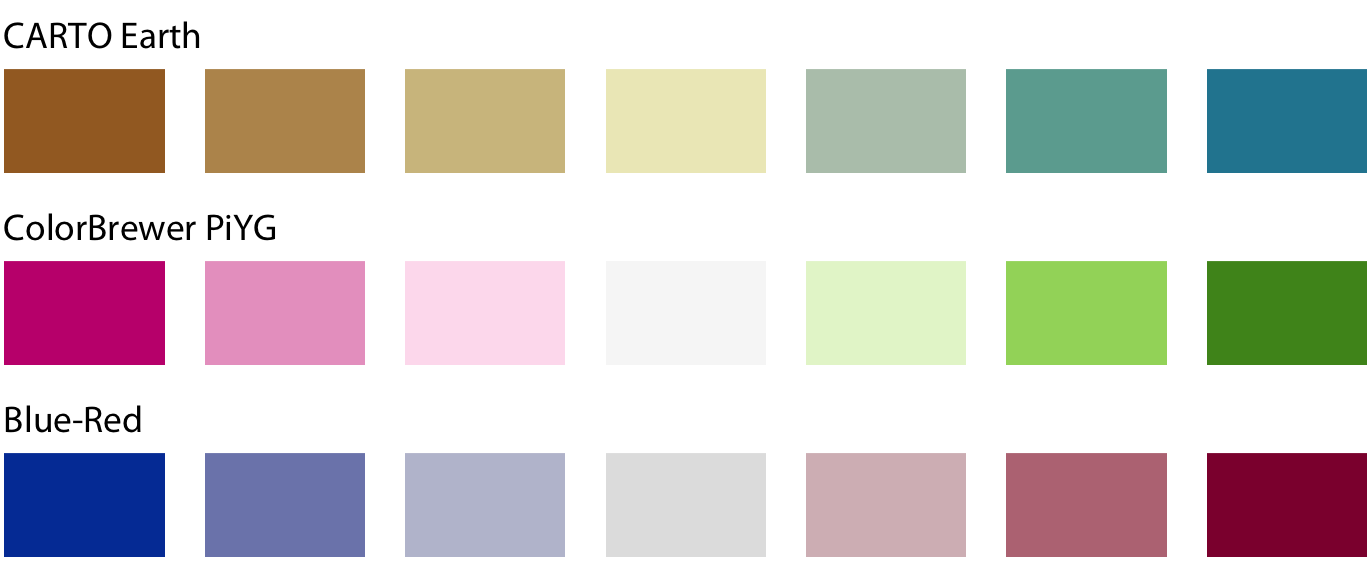

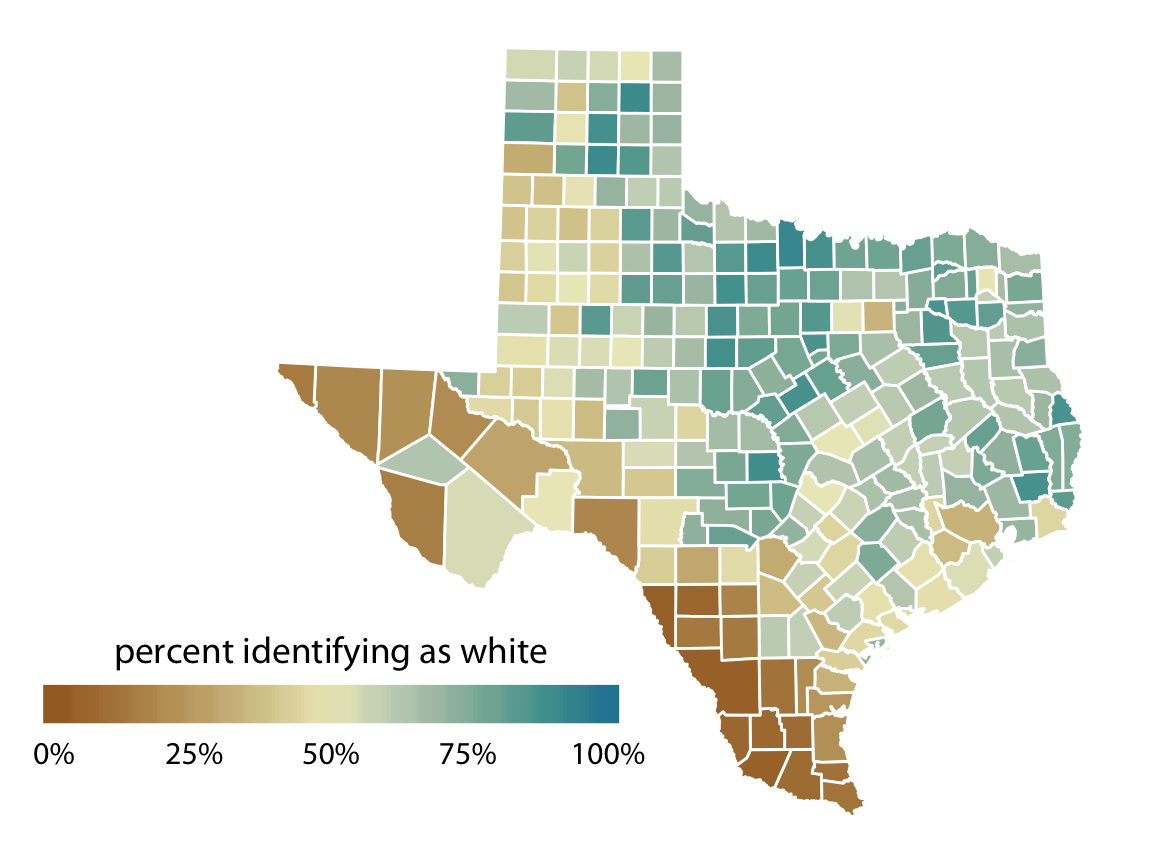

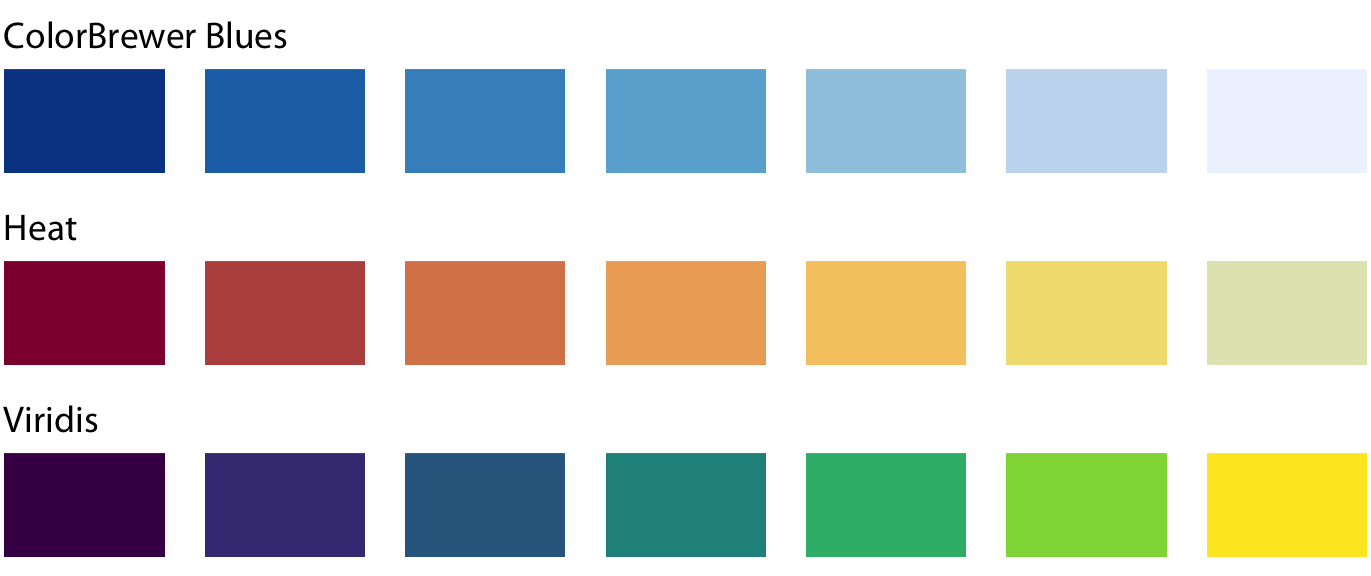

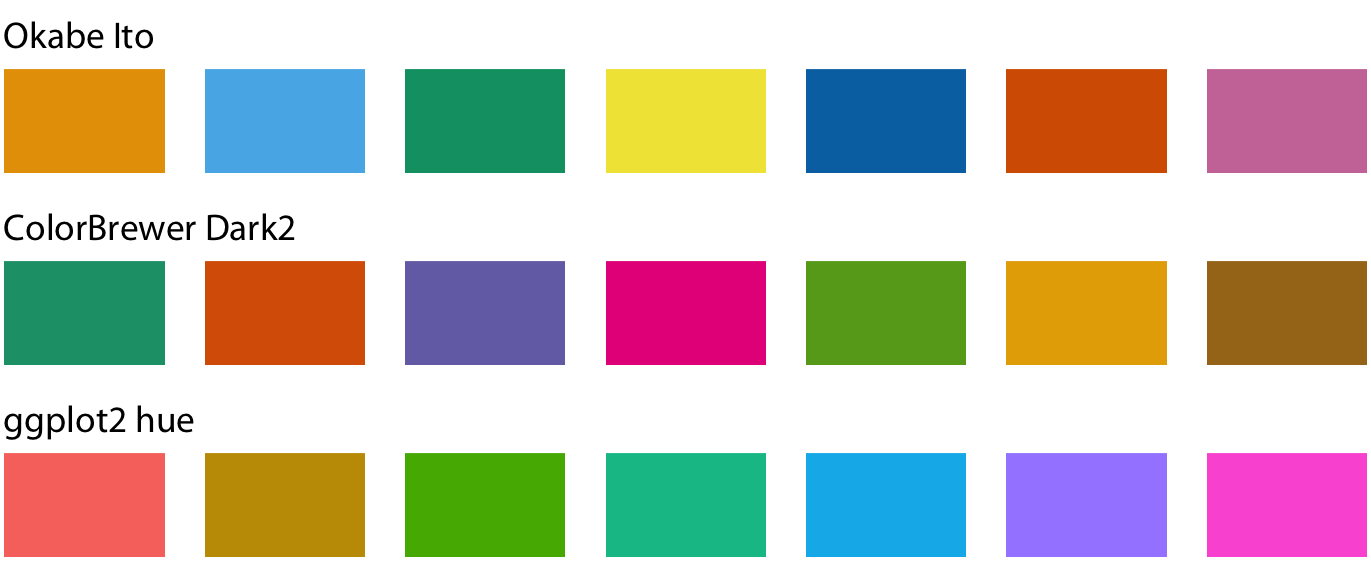

Common Aesthetics
The Grammar of Graphics
Example
- Note that (at least for this class), we are treating x- and y-coordinates as aesthetics.
The Grammar of Graphics
ggplot2
- The
ggplot2package inR(part of thetidyverse) uses precisely this framework to generate graphics.- In fact, the
ggstands for “grammar of graphics”
- In fact, the
The Grammar of Graphics
ggplot2
- 1
-
The dataframe is called
commute_times - 2
- We want Commute Distance on the horizontal axis
- 3
- We want Commute Time on the vertical axis
- 4

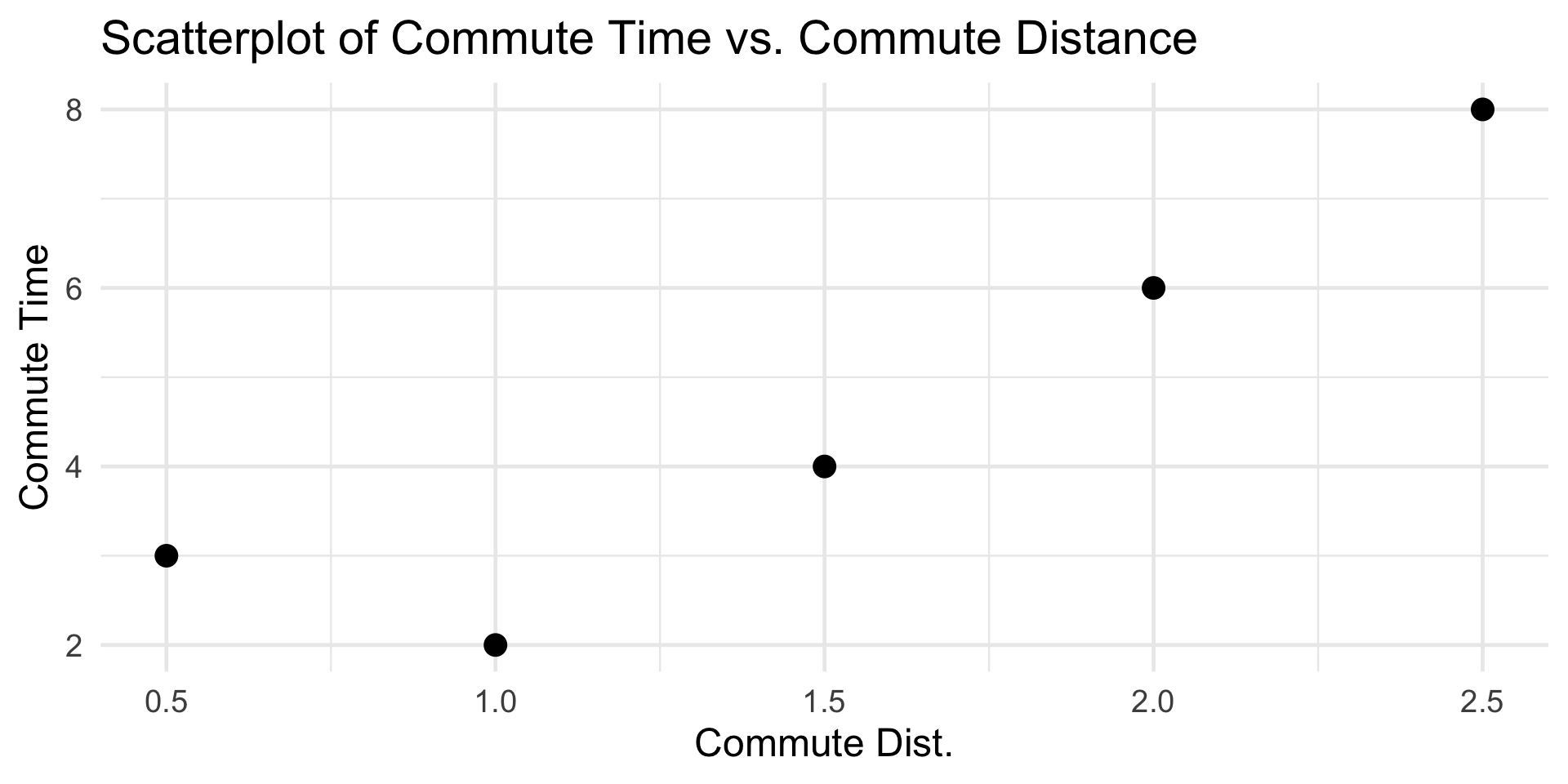

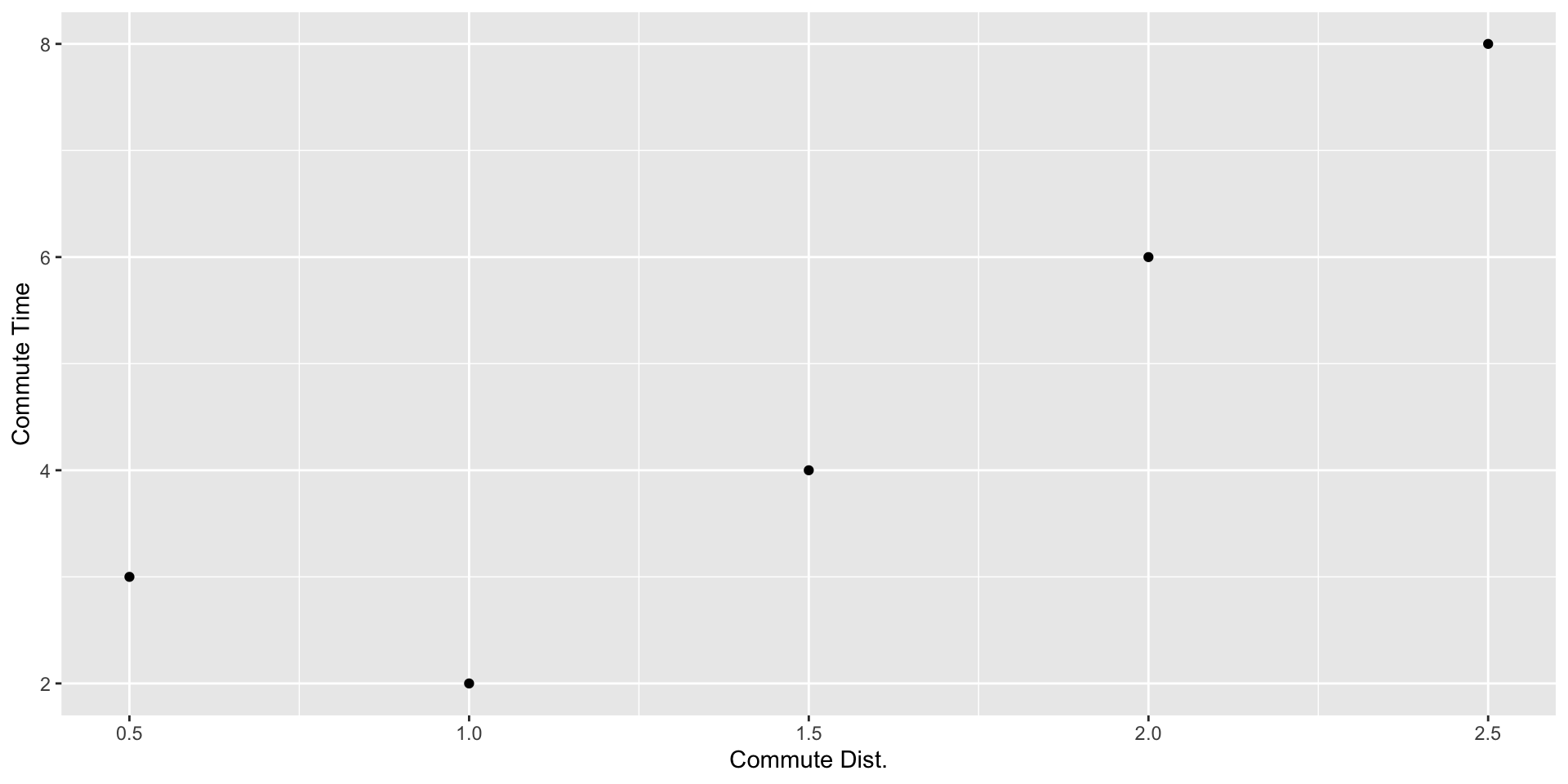

- We want points (i.e. we want to generate a scatterplot)

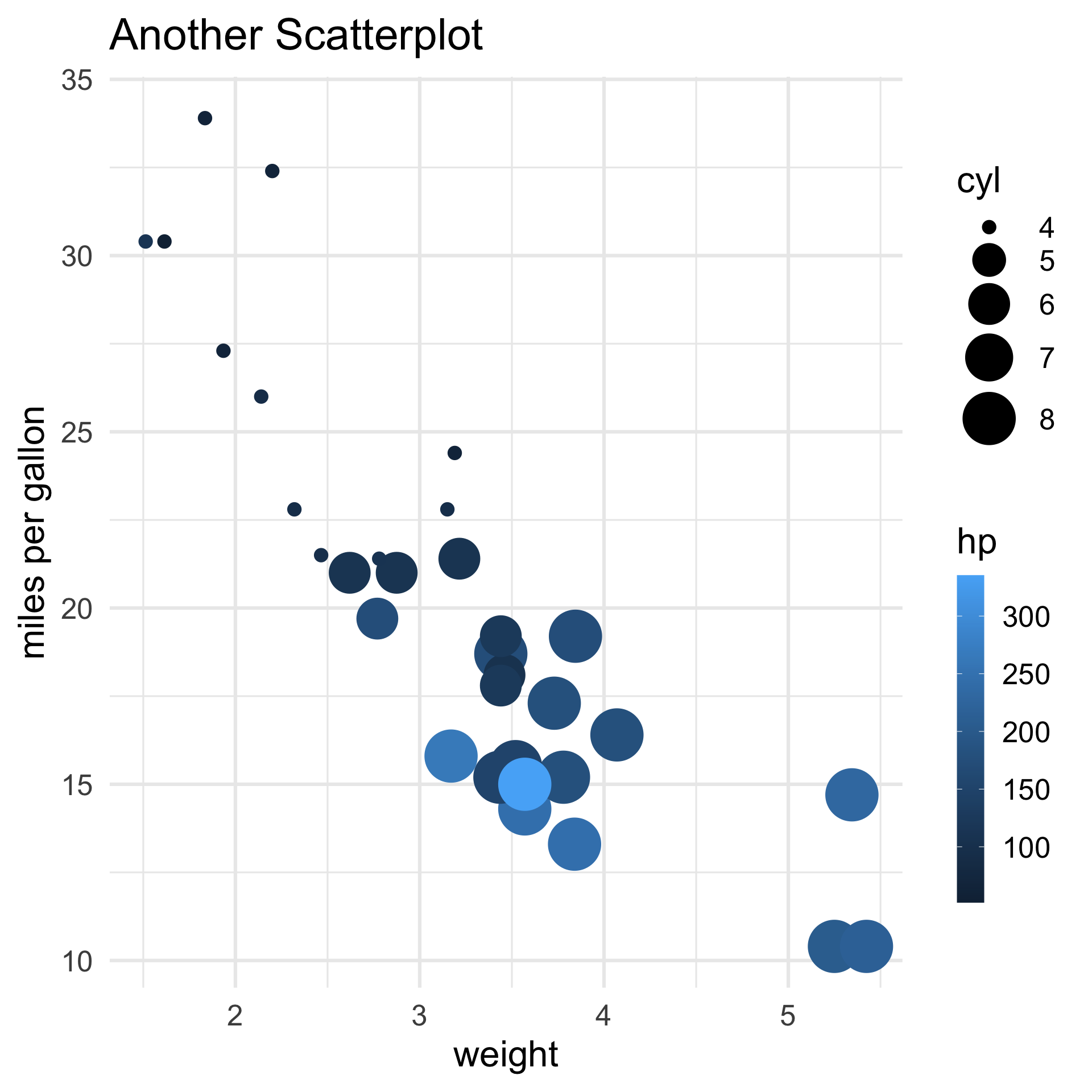

The Grammar of Graphics
ggplot2
Code
- 1
- Increase the point size
- 2
- Add a title
- 3
- Add a theme to the plot

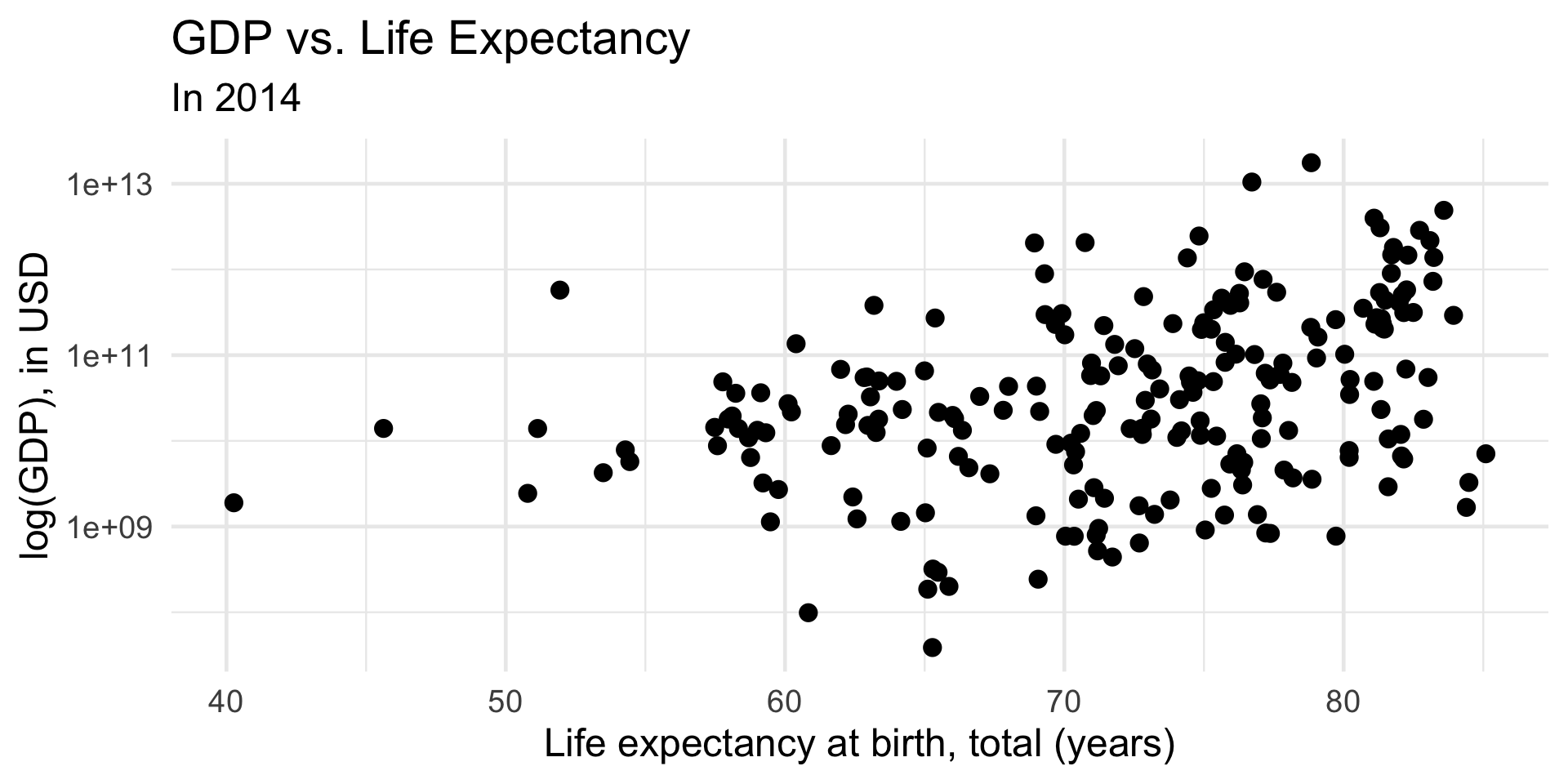

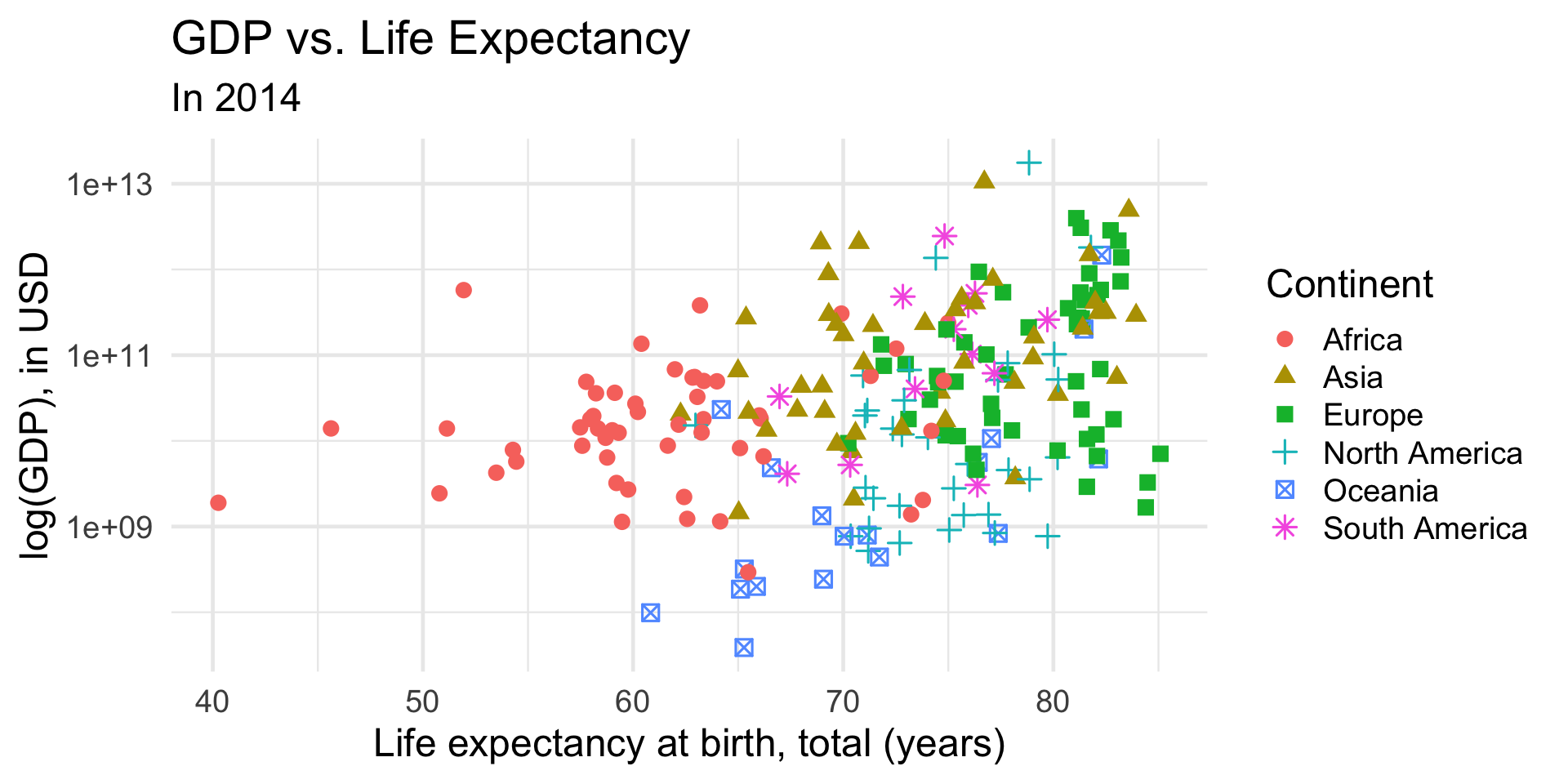

World Bank Dataset
- The World Bank is a collection of organization aiming to study the effects of poverty worldwide.
- You can read more about them at their website.
- To motivate our discussions on visualizations, we’ll be taking a look at some data collected by the World Bank. The variables included are:
- Country Name
- Country Code (abbreviation)
- Continent
- Year of observation
- GDP (Gross Domestic Product)
- Female Life Expectancy at Birth
- Male Life Expectancy at Birth
- Total Life Expectancy at Birth
- Female Adult Literacy Rate
- Male Adult Literacy Rate
- Total Adult Literacy Rate
- Female Youth Literacy Rate
- Male Youth Literacy Rate
- Total Youth Literacy Rate
- Population

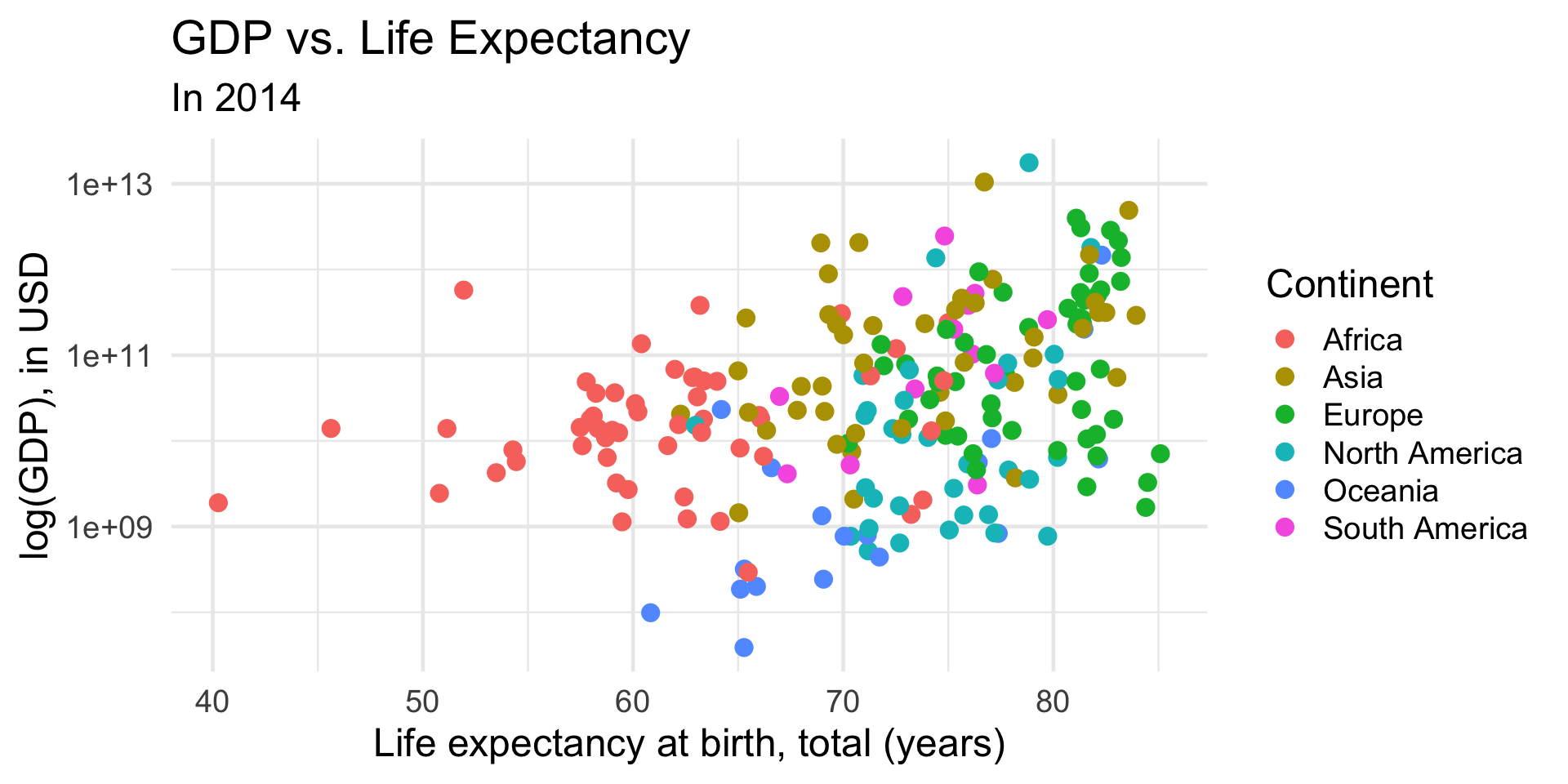

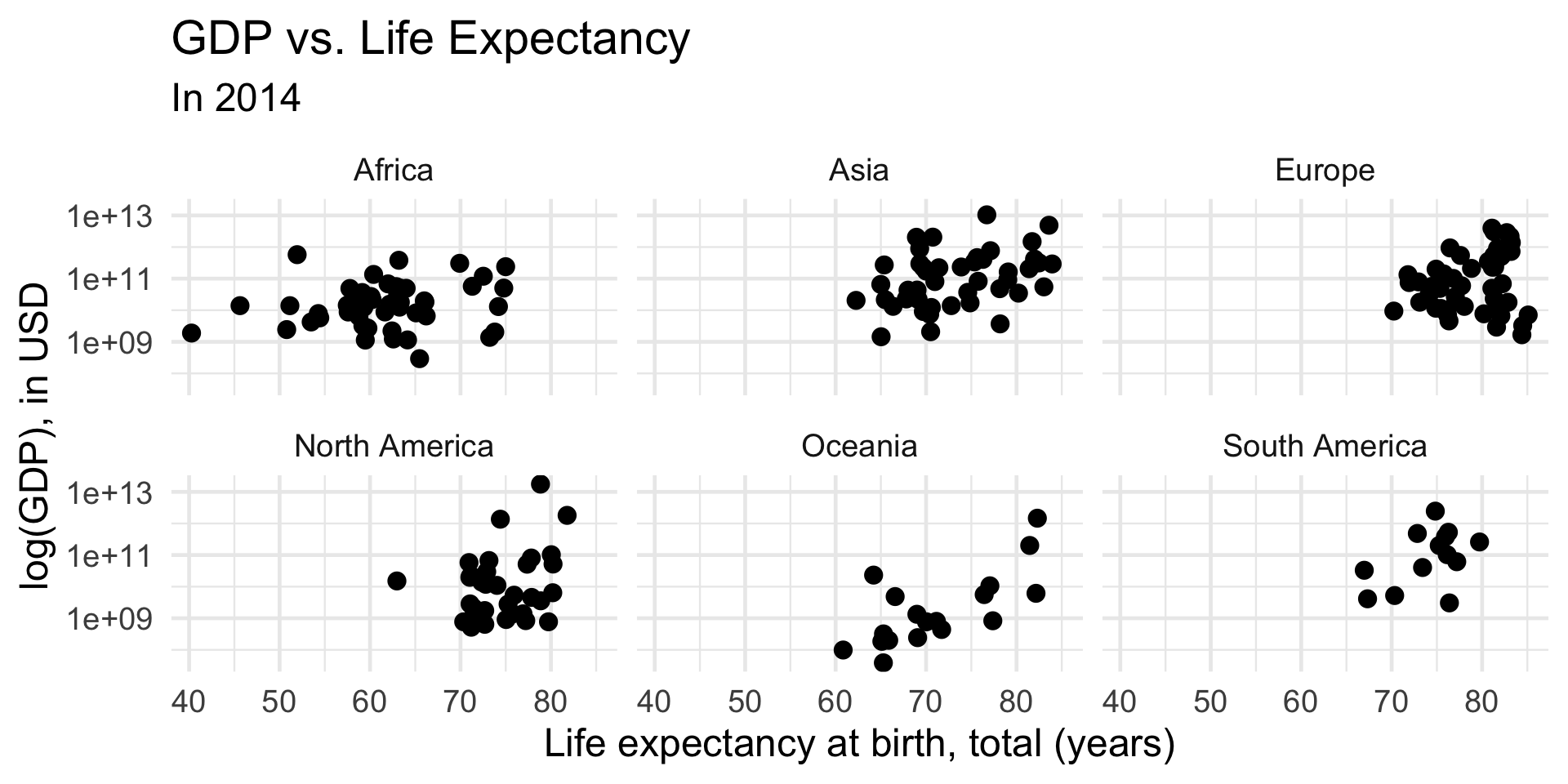

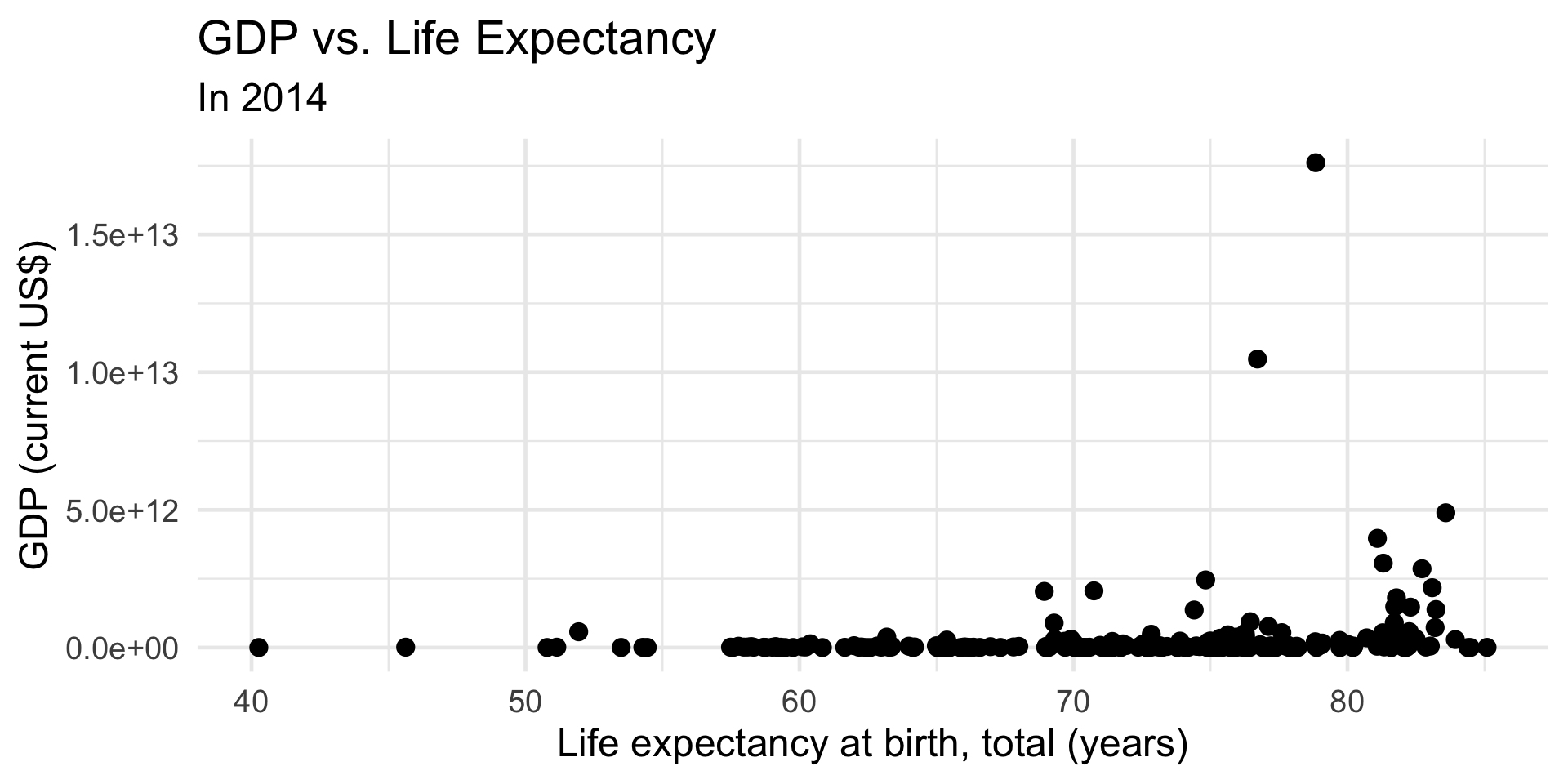

World Bank Dataset
Country Name Country Code Continent
